PyPlain: Macro Backend Server

Jan 1, 2023 - Present

#Backend Framework#Macro Framework#HTTP Server#Python

PyPlain is a lightweight, dependency-free Python web framework designed for rapid development of simple server applications and calculation services. Built entirely using Python's standard library, PyPlain eliminates the complexity and overhead of traditional web frameworks while providing essential HTTP server functionality through an intuitive decorator-based routing system.

The framework prioritizes simplicity, readability, and minimalism, making it ideal for educational purposes, prototyping, microservices, and applications that require server-side logic without the burden of database connections or heavy dependencies.

Motivation and Design Philosophy

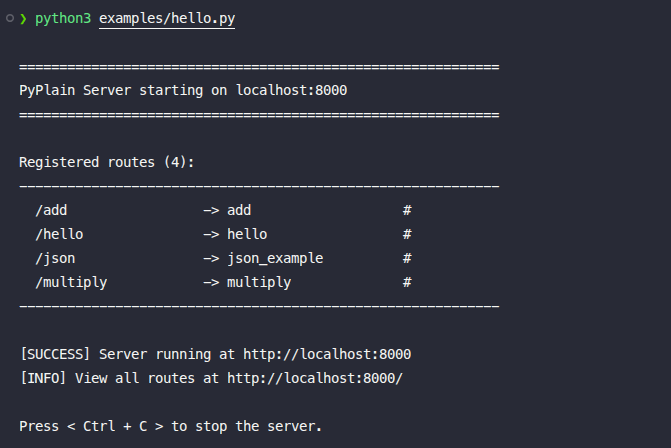

pyplain_minimal_in_action_terminal

Why PyPlain Was Created

Modern web frameworks often introduce significant complexity even for simple use cases. When building lightweight applications that primarily perform calculations or serve simple API endpoints, developers frequently find themselves managing dependencies, configuration files, and boilerplate code that far exceeds the actual requirements of their project.

PyPlain addresses this gap by providing:

Zero External Dependencies: Built exclusively with Python's standard library, ensuring compatibility and eliminating dependency management overhead
Minimal Learning Curve: The entire framework can be understood by reading a single core file, making it accessible to developers at all levels
Rapid Prototyping: Get a web server running with just a few lines of code
Educational Value: Clean, well-documented code serves as a learning resource for understanding HTTP server fundamentals

Design Principles

Simplicity Over Features: Every component serves a clear purpose with minimal abstraction
Readability First: Code is self-documenting with comprehensive type hints and comments
Standard Library Only: No external dependencies means easier deployment and maintenance
Backward Compatibility: Handlers can work with or without request context parameters

Architecture and Implementation

Core Components

PyPlain consists of four primary modules:

1. Server Core

The PyPlainServer class forms the foundation of the framework. It implements:

Route Registration: Decorator-based pattern for defining endpoints
HTTP Request Handling: Processes both GET and POST requests
Request Context Management: Provides handlers with parsed query parameters and POST data
Auto-Loading System: Dynamically imports route definitions from organized directories

2. Configuration Module

Provides a structured approach to server configuration with sensible defaults:

python
class Config:
    def __init__(self, host: str = "localhost", port: int = 8000, debug: bool = False):
        self.host = host
        self.port = port
        self.debug = debug

3. Utilities Module

Helper functions for common web development tasks:

json_response(): Standardized JSON response formatting
parse_query_params(): Query string parsing utility

4. Request Handling System

The framework implements a flexible request handling mechanism that automatically detects whether route handlers accept request context:

python
import inspect

sig = inspect.signature(handler)
if len(sig.parameters) > 0:
    result = handler(self._request_context)
else:
    result = handler()

This design allows both simple handlers that require no parameters and advanced handlers that need access to request data, maintaining backward compatibility while enabling powerful functionality.

Key Features

1. Decorator-Based Routing

The framework uses Python decorators to register routes, providing a clean and intuitive API:

python
from pyplain import PyPlainServer

server = PyPlainServer()

@server.route("/hello")
def hello():
    return "Hello, World!"

@server.route("/calculate")
def calculate():
    return "Result: 42"

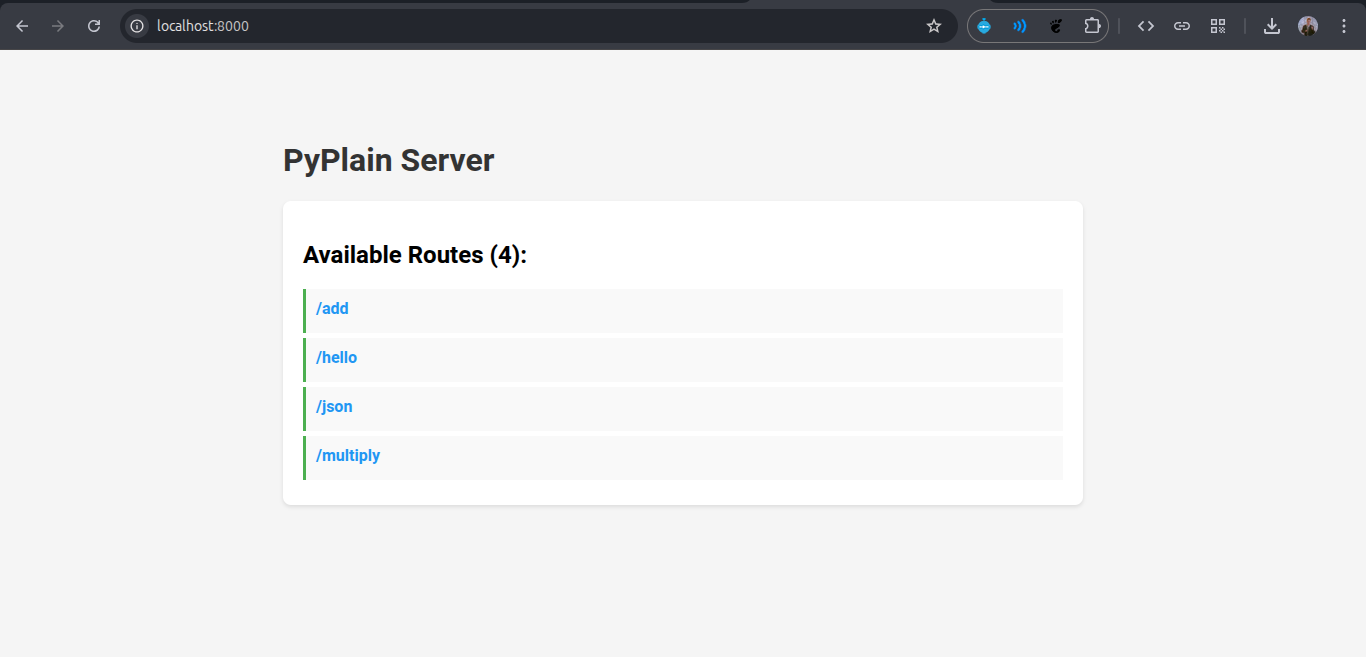

landing

2. HTTP Method Support

PyPlain handles both GET and POST requests with automatic parsing of query parameters and form data:

python
@server.route("/api/process")
def process_data(req):
    # Access query parameters
    param1 = req['query'].get('param1')

    # Access POST data
    post_value = req['post'].get('input_field')

    # Combined params (query + POST)
    all_params = req['params']

    return {"status": "success", "data": all_params}

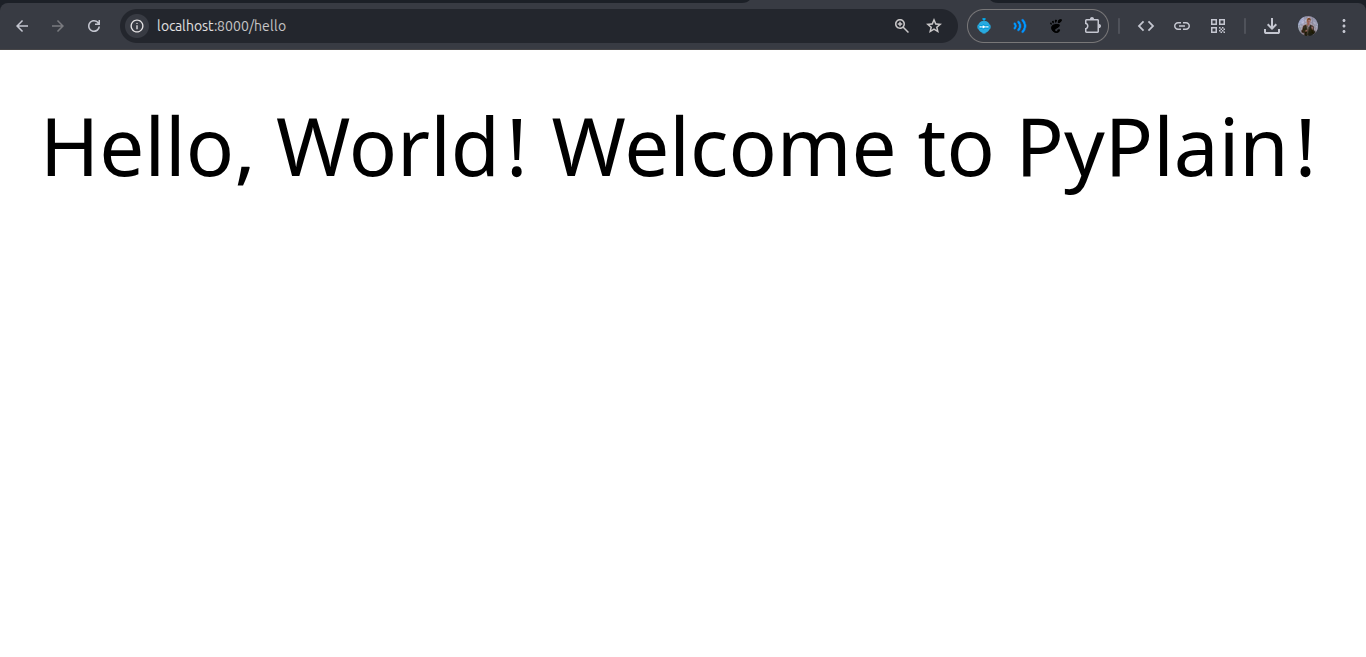

hello_from_pyplain

3. Dynamic Route Loading

Routes can be organized in separate files within a routes/ directory and automatically loaded:

text
pyplain/
├── routes/
│   ├── __init__.py
│   ├── api.py      # API endpoints
│   └── pages.py    # Page routes

The framework automatically discovers and imports these route files, promoting code organization and modularity.

4. Type Safety

Comprehensive type hints throughout the codebase enable better IDE support and static type checking:

python
from typing import Callable, Dict, Tuple

def _handle_request(
    self,
    path: str,
    method: str = "GET",
    query_string: str = "",
    post_data: bytes = b""
) -> Tuple[int, bytes, str]:
    # Implementation

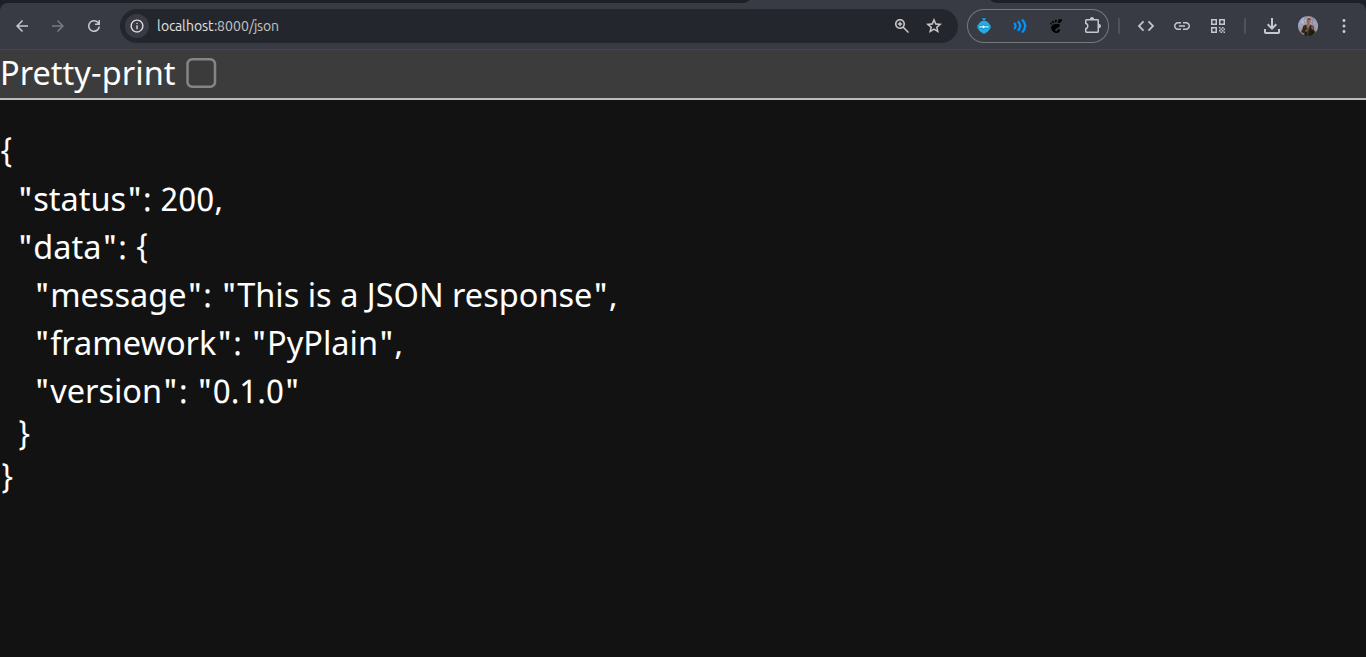

example_json

5. Built-in HTML Generation

The framework includes utilities for generating HTML responses, including an automatic index page that lists all registered routes:

python
# Automatic index page at root path (/)
# Displays all registered routes with descriptions

Code Examples

Basic Server Setup

python
from pyplain import PyPlainServer

# Initialize server
server = PyPlainServer(host="localhost", port=8000)

# Define routes
@server.route("/")
def index():
    return "<h1>Welcome to PyPlain</h1>"

@server.route("/api/status")
def status():
    return {"status": "online", "version": "1.0"}

# Start server
if __name__ == "__main__":
    server.run()

Form Processing Example

python
@server.route("/submit")
def handle_form(req):
    # Extract form data from POST request
    name = req['post'].get('name', '')
    email = req['post'].get('email', '')

    # Process data
    result = f"Received: {name} ({email})"

    # Return HTML response
    return f"""
    <html>
        <body>
            <h1>Form Submitted</h1>
            <p>{result}</p>
        </body>
    </html>
    """

Calculation Service Example

python
@server.route("/calculate")
def calculate(req):
    try:
        # Get parameters
        a = float(req['params'].get('a', 0))
        b = float(req['params'].get('b', 0))
        op = req['params'].get('operation', 'add')

        # Perform calculation
        if op == 'add':
            result = a + b
        elif op == 'multiply':
            result = a * b
        # ... more operations

        return {"result": result, "operation": op}
    except ValueError as e:
        return {"error": str(e)}, 400

Advanced: Request Context Usage

python
@server.route("/api/user")
def get_user(req):
    # Access request metadata
    method = req['method']  # GET, POST, etc.
    path = req['path']      # /api/user

    # Access parameters
    user_id = req['params'].get('id')

    # Return JSON response
    return {
        "user_id": user_id,
        "method": method,
        "path": path
    }

Technical Highlights

Request Processing Pipeline

Request Reception: HTTP server receives incoming request
Path Parsing: Extract URL path and query string
Method Detection: Identify HTTP method (GET/POST)
Data Parsing: Parse query parameters and POST body
Context Creation: Build request context dictionary
Route Matching: Match path to registered route handler
Handler Execution: Invoke handler with appropriate parameters
Response Formatting: Convert handler return value to HTTP response
Content Type Detection: Automatically set appropriate Content-Type header

Response Type Handling

The framework intelligently handles different return types:

Strings: Returned as HTML (text/html)
Dictionaries: Serialized to JSON (application/json)
Numbers: Converted to plain text (text/plain)
Error Responses: Proper HTTP status codes (404, 500, etc.)

Error Handling

Comprehensive error handling ensures the server remains stable:

python
try:
    handler = self.routes[path]
    result = handler(self._request_context)
except Exception as e:
    error_msg = f"500 Internal Server Error: {str(e)}"
    return 500, error_msg.encode('utf-8'), 'text/plain'

What Makes PyPlain Stand Out

1. Educational Value

The entire framework is readable and understandable. Developers can learn HTTP server fundamentals by studying the implementation, making it an excellent teaching tool.

2. Zero Configuration

No configuration files, no environment variables, no complex setup. Just import and use:

python
from pyplain import PyPlainServer
server = PyPlainServer()
server.run()

3. Production-Ready Foundation

While minimal, the framework provides a solid foundation that can be extended for production use. The architecture supports integration with:

WSGI servers (Gunicorn, uWSGI)
Reverse proxies (Nginx)
Database libraries
Authentication systems

4. Performance Characteristics

By using Python's built-in http.server and avoiding framework overhead, PyPlain offers:

Low memory footprint
Fast startup time
Minimal latency for simple operations

5. Extensibility

The modular design allows easy extension:

python
# Custom middleware example
class PyPlainServer:
    def __init__(self):
        self.middleware = []

    def use(self, middleware_func):
        self.middleware.append(middleware_func)

Use Cases

PyPlain excels in scenarios such as:

API Prototyping: Rapidly build and test API endpoints
Calculation Services: Server-side computation without database overhead
Educational Projects: Teaching web development fundamentals
Microservices: Lightweight services with minimal dependencies
Internal Tools: Simple web interfaces for internal processes
IoT Applications: Resource-constrained environments requiring minimal frameworks

Project Structure

text
PyPlain/
├── pyplain/
│   ├── __init__.py          # Package exports
│   ├── server.py            # Core server implementation (350 lines)
│   ├── config.py            # Configuration management
│   ├── routes/              # Route organization directory
│   │   └── __init__.py
│   └── utils/               # Utility functions
│       └── __init__.py
├── examples/
│   ├── hello.py             # Basic usage example
│   └── testWeb.py           # Full-featured web application
├── tests/
│   └── test_server.py       # Unit test suite
├── pyproject.toml           # Package metadata
└── README.md                # Documentation

Testing and Quality Assurance

The framework includes a comprehensive test suite covering:

Route registration functionality
Multiple route handling
Server configuration
Request processing
Error handling

Tests can be run with:

bash
python tests/test_server.py

Future Enhancements

Potential areas for extension include:

WebSocket support for real-time applications
Template engine integration
Session management
File upload handling
Middleware system for cross-cutting concerns
RESTful routing conventions
Automatic API documentation generation

Conclusion

PyPlain demonstrates that powerful web frameworks need not be complex. By focusing on essential functionality and maintaining a clean, readable codebase, PyPlain provides developers with a tool that is both immediately useful and educational. The framework's minimalism is its greatest strength, enabling rapid development while remaining transparent and understandable.

The project showcases strong software engineering principles: clean architecture, comprehensive type hints, thorough documentation, and thoughtful design decisions that balance simplicity with functionality. It serves as both a practical tool and a demonstration of how minimalism in software design can lead to elegant solutions.

Technical Specifications

Language: Python 3.14+
Dependencies: None (standard library only)
License: MIT
Architecture: Object-oriented, decorator-based routing
HTTP Support: GET, POST methods
Response Formats: HTML, JSON, Plain Text
Type Safety: Full type hints throughout

PyPlain represents a minimalist approach to web framework design, proving that simplicity and functionality can coexist in software engineering.
